Side and heel lasting machine QF-729DA(MA) Lasting machine

Intelligent computerized and auto cementing side and heel lasting machine.


《Side and heel lasting machine》National industry standard drafting committee.

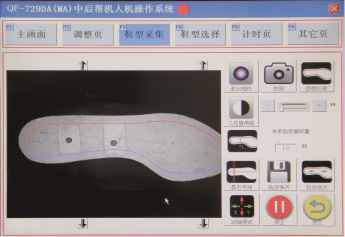

Computer cementing track scanning system



             Pincer seat is adjusted by electric. Elevation angle of side lasting is adjusted by electric. With save shoe styles memory function.

+FEATURES

SCANNING:

Infrared vision scanning quickly set the gum trajectory,can be completed within 1 second;

ZOOM:

Can be infinitely reduced or enlarged shoe last plastic track,adjust quickly;

MODIFY:

Modify the shoes on the glue trajectory of the offset angle convenient and intuitive;

STORAGE:

The computer can store countless on the platic,save convenient and quick;

SEARCH:

Enter the shoe type number to quickly rind the shoes on the plastic track;

CHIP:

Place the 1C chip in the shoe last,and take the shoe type glue track to finish in 1 second;

SWITCH:

Left and right foot rubber track can be semi-automatic or fully automatic switch;

SMOOTH:

Glue trajectory accurate,smooth,sleek,beautiful;

SPEED:

The glue on the speed of agility,the glue evenly stable;

GLUING:

Gluing the trajectory of electric control,not subject to temperature changes and the use of the length of time;

DISTANCE:

The length of the infra-red infrared positioning,accurate and con venient adjustment;

PRACTICAL:

Suitable for orders and small batches of changes in the large differences in shoe-line operations.


          Model     Dimensions(LWH)      Packing size (LWH)    Weight     Production     Power
   QF-729DA(MA)  1700*1000*1950mm   1800*1160*2100mm   1100kg  1500-1800pairs/8hrs      3HP
